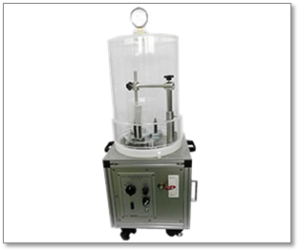

This is a groundbreaking automated vacuum mixing machine that combines a high-viscosity compliant type mixer that mix the material (liquid + liquid, liquid + powder) in the container by fixing the mixing blades and rotating the container, and a simple vacuum defoaming chamber.

You can save time and obtain powerful defoaming effect because mixing and defoaming are performed simultaneously.

Low cost, and mixing and defoaming of high viscosity material are simultaneously possible.

The mixing blade is fixed on inner wall of container (with no gaps), therefore even high viscosity material can be mixed uniformly.
Easy to check the inner because the vacuum chamber is made of clear acrylic.
The material container is 1～10L, it can be mounted with one-touch.
Since it is mixed in a vacuum state, the material in the container does not overflow easily.
You can use small container (about 200cc) or disposal container (plastic cup) or your dedicated container by preparing a dedicated holder and mixing blade as an option.

The vacuum pump is also integrated build in, lightweight and space-saving.

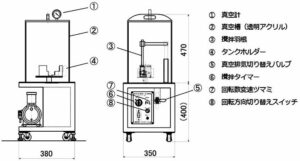

Standard specification (4L)

　Container mounting range : Outside Dia. Φ70～Φ180　Max height 220mm
　Container rotation speed：20～120rpm　 Continuous speed variation
　Mixing timer：0～15min / Continuous
　Mixing motor：AC100V　―　90W
　Vacuum pump：50L/min　equipped with oil mist
　Power：AC100V　―　500W
　Wight：around 38kg

We can also manufacture special order specifications, so please contact us.
